Carburetor Rebuild Kit Fiat 500 R / 126 B Weber - W108
The W108 carburetor rebuild kit is suitable for rebuilding the Weber carburetors specified below, fitted to the Fiat 500 R and Fiat 126 B. It allows you to replace the gaskets and needle valve during the carburetor rebuild. The kit is supplied WITHOUT JETS.
Important technical note
CAUTION: check the carburetor designation and the needle valve seat diameter before purchase. The W108 kit uses a needle valve with a 1.25 mm seat.
Vehicle compatibility
- Fiat 500 R.
- Fiat 126 B.
Compatibility refers to the vehicles indicated equipped with one of the carburetors listed below.
Compatible carburetors
- Weber 24 IMB 100/250.
- Weber 28 IMB 100/250.

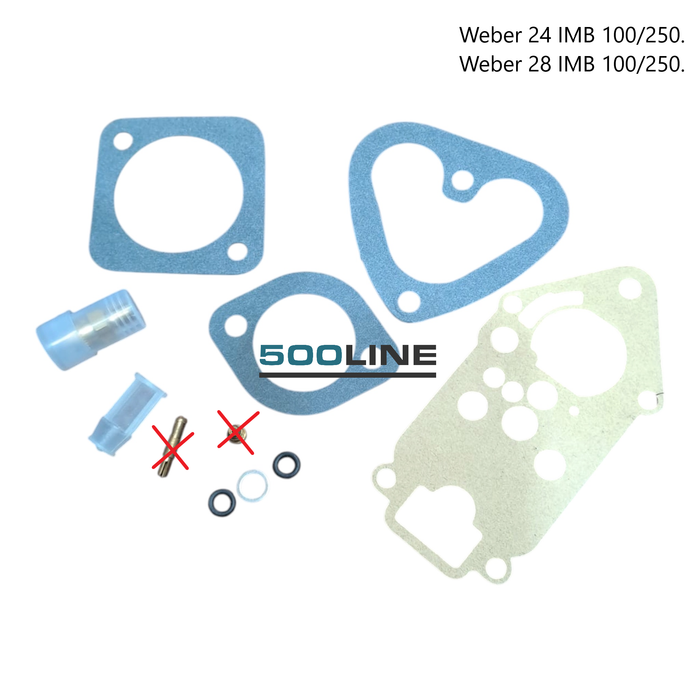

Kit contents
- Needle valve.
- Complete set of gaskets for the carburetor rebuild, including the float bowl intermediate gasket.
- Fuel filter.
JETS NOT INCLUDED.
Technical data and difference from the W406
- Product code: W108.
- Type: carburetor rebuild kit.
- Needle seat: type 370.
- Needle valve seat diameter: 1.25 mm.
- Jets: not included.
The needle seat diameter distinguishes the W108 from the W406 kit: the W108 uses a 1.25 mm seat, while the W406 uses a 1.30 mm seat. Check this data along with the carburetor designation before choosing the kit.
